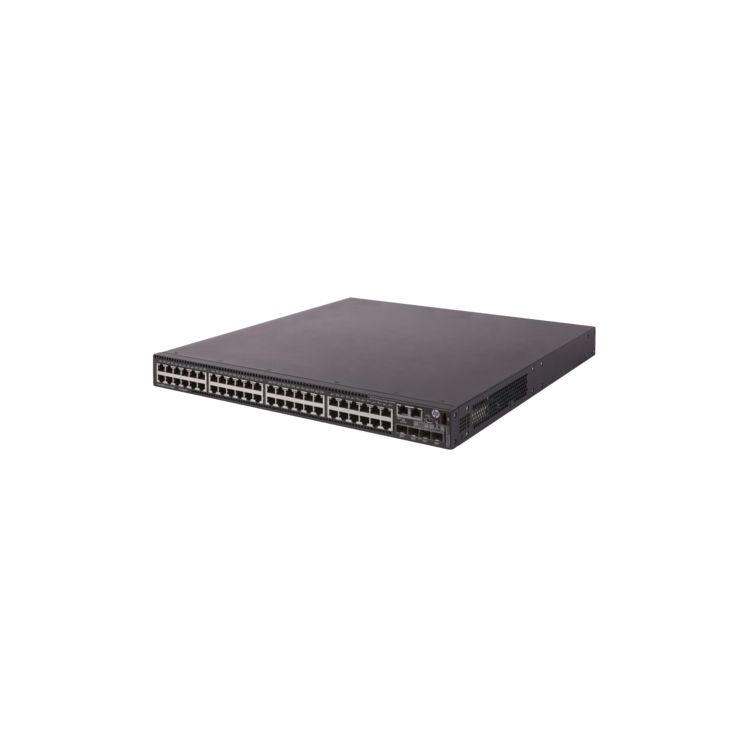

HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
EAN:
0889296940456
HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address...
Product Description
Product Description
0
HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32768 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32768 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Technical Spec
Technical Spec
Product Description
HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Tech Specs
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support
Yes
Full duplex
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-sensing
Yes
VLAN support
Yes
MAC address table
32768 entries
Switching capacity
216 Gbit/s
Throughput
190.5 Mpps
Latency (1 Gbps)
5 µs
Latency (10 Gbps)
3 µs
Jumbo frames support
Yes
Packet buffer memory
4 MB
DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Memory type
SDRAM
Internal memory
2048 MB
Flash memory
512 MB
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
75 W
Power consumption (max)
670 W
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
1440 W
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Width
439.9 mm
Depth
460 mm
Height
43.7 mm
Weight
12.5 kg
Harmonized System (HS) code
85176990
