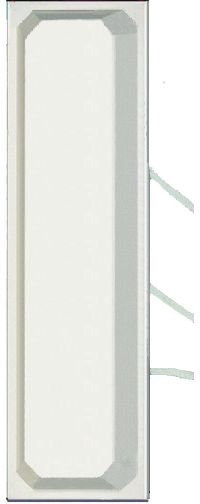

HPE Aruba Networking AP-ANT-16 network antenna Omni-directional antenna 4.7 dBi
EAN:
0190017019031
HPE Aruba Networking AP-ANT-16. Antenna gain level (max): 4.7 dBi, Frequency band: 2.4-2.5/4.9-5.9 GHz, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Polarization: Vertical...
Product Description
Product Description
HPE Aruba Networking AP-ANT-16. Antenna gain level (max): 4.7 dBi, Frequency band: 2.4-2.5/4.9-5.9 GHz, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Polarization: Vertical polarization, Voltage Standing Wave Ratio (VSWR): <2.0:1. Power consumption (max): 2 W. Width: 92 mm, Depth: 22 mm, Height: 308.2 mm
Technical Spec
Technical Spec
Product Description
HPE Aruba Networking AP-ANT-16, 4.7 dBi, 2.4-2.5/4.9-5.9 GHz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 3.9 dBi, 4.7 dBi, 50 Ω
Tech Specs
Performance
Antenna gain level (max)
4.7 dBi
Frequency band
2.4-2.5/4.9-5.9 GHz
Networking standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Antenna gain (2.4 GHz)
3.9 dBi
Antenna gain (5 GHz)
4.7 dBi
Impedance
50 Ω
Features
Antenna type
Omni-directional antenna
Polarization
Vertical polarization
Voltage Standing Wave Ratio (VSWR)
<2.0
Product colour
White
Housing material
Acrylonitrile styrene acrylate (ASA)
Mounting
Ceiling
Power
Power consumption (max)
2 W
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Weight & dimensions
Width
92 mm
Depth
22 mm
Height
308.2 mm
Packaging content
Mounting kit
Yes
Logistics data
Harmonized System (HS) code
85177100
