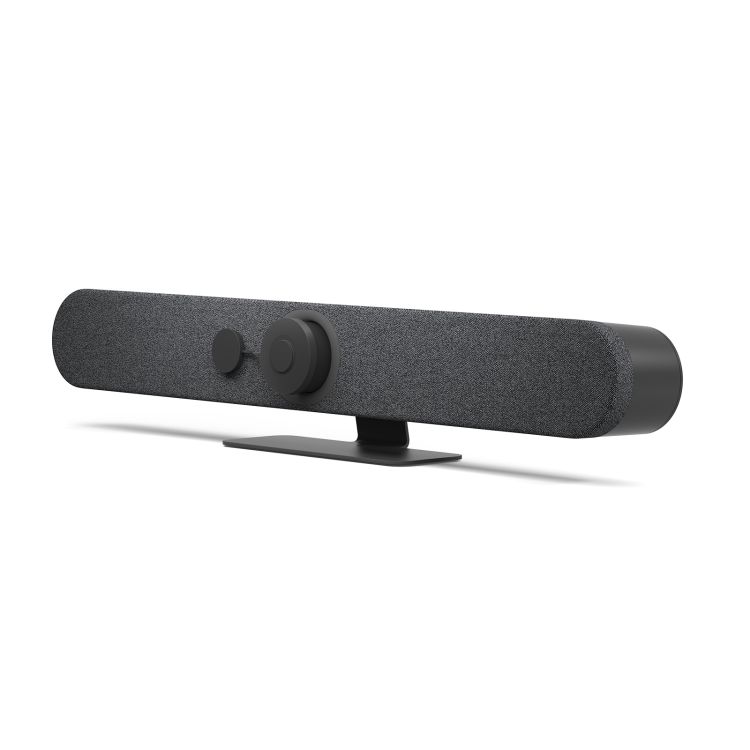

Logitech Rally Bar Mini
EAN:
5099206093096
Logitech Rally Bar Mini. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Product colour: Graphite
Product Description
Product Description
0
Logitech Rally Bar Mini. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Product colour: Graphite
Logitech Rally Bar Mini. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Product colour: Graphite
Technical Spec
Technical Spec
Product Description
Logitech Rally Bar Mini, Group video conferencing system, 4K Ultra HD, 30 fps, 4x, Graphite
Tech Specs
Product type
Group video conferencing system
Product colour
Graphite
Pan range
-25 - 25°
Tilt angle range
-15 - 15°
PTZ control
Yes
HD type
4K Ultra HD
Supported video modes
576p, 720p, 900p, 1440p, 2160p
Maximum frame rate
30 fps
Built-in speaker(s)
Yes
Output level
92/99 dB
Line-out impedance
4 Ω
Output voltage Total Harmonic Distortion (THD)
2%
Audio beamforming
Yes
Noise reduction
Yes
Echo cancellation
Yes
RMS rated power
8 W
Microphone pick-up range
4.5 m
Sample rates
0 - 48 kHz
HDMI ports quantity
3
HDMI output ports quantity
2
HDMI input ports quantity
1
USB connector type
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
DC-in jack
Yes
Microphone in
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols
IPv4, IPv6
Security algorithms
128-bit AES
Zoom capability
Yes
Digital zoom
4x
Horizontal field of view
113°
Vertical field of view
80.7°
Diagonal field of view
120°
Remote control interface
Bluetooth
Microphone sensitivity
-36 dB
Microphone frequency
90 - 16000 Hz
Microphone direction type
Omnidirectional
Sound pressure level (max)
90 dB
Number of microphones
6
Telepresence
No
Master (outer) case gross weight
6.29 kg
Master (outer) case length
804 mm
Master (outer) case width
200 mm
Master (outer) case height
212 mm
Harmonized System (HS) code
85176990
Battery capacity
220 mAh
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-40 - 70 °C
Heat dissipation
64 BTU/h
Power source type
AC
AC input voltage
100 - 240 V
Current
4.754 A
DC input voltage
19 V
Battery technology
Lithium
Number of batteries supported
2
Power plug type
Type G
Width
719 mm
Depth
101 mm
Height
91.4 mm
Weight
4.03 kg
Package width
191 mm
Package depth
789 mm
Package height
199 mm
Package weight
5.8 kg
Cables included
AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length
2.5 m
HDMI cable length
2 m
AC adapter included
Yes
Remote control included
Yes
Quick start guide
Yes
Packaging content
Rally Bar Mini
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main lens and AI Viewfinder
User documentation
