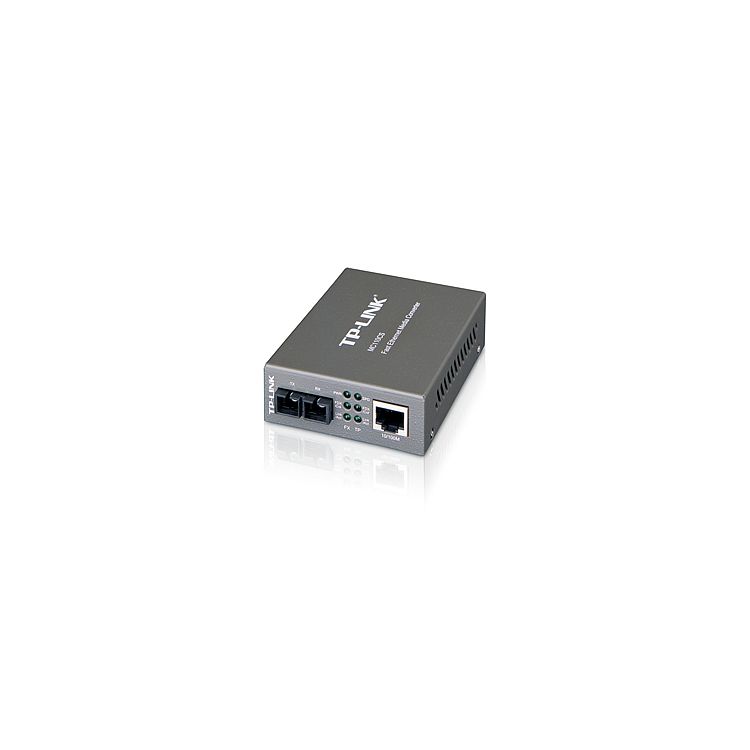

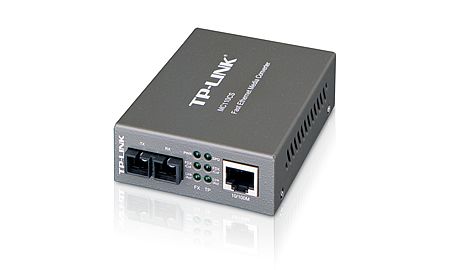

TP-Link MC110CS network media converter 100 Mbit/s 1310 nm Single-mode Black
EAN:
0845973030407
TP-Link MC110CS. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 12500 m, Wavelength: 1310 nm, Fiber mode structure:...
Product Description
Product Description
TP-Link MC110CS. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 12500 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.4 W
Technical Spec
Technical Spec
Product Description
TP-Link MC110CS, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, 10,100 Mbit/s, 10BASE-T, 100BASE-FX, 100BASE-T, Full, Half, Cat3, Cat4, Cat5
Tech Specs
Network
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates
10,100 Mbit/s
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-T
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Cable types supported
Cat3, Cat4, Cat5
Performance
Maximum transfer distance
12500 m
Wavelength
1310 nm
Fiber mode structure
Single-mode
Features
Internal
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Fiber optic connector
SC
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Power
Power consumption (max)
2.4 W
Weight & dimensions
Width
95 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
