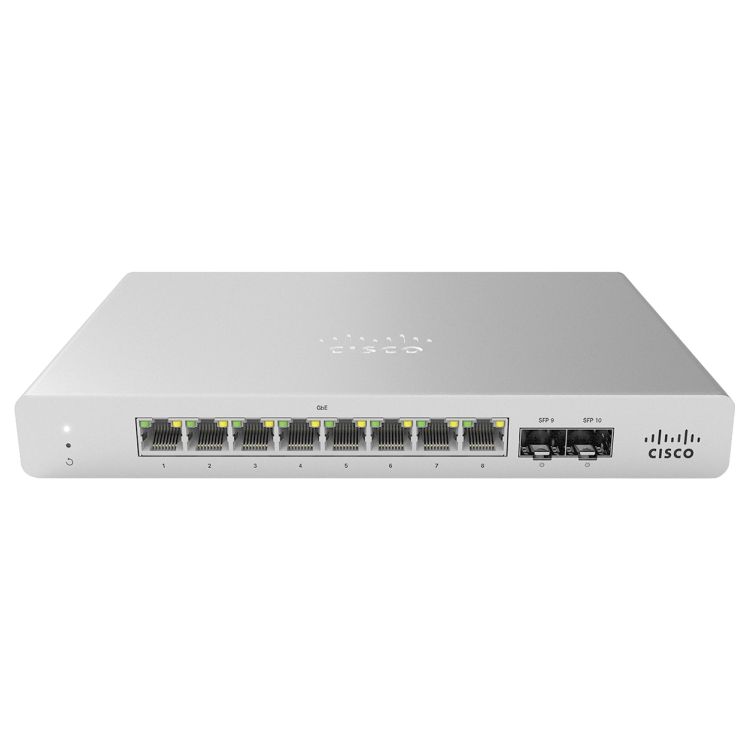

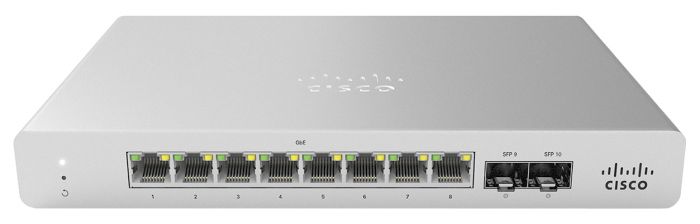

Cisco Meraki MS120-8 Cloud Managed Switch L2 Gigabit Ethernet (10/100/1000)
EAN:
0810979012955
Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for...
Product Description
Product Description
Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location. Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.
Technical Spec
Technical Spec
Product Description
Cisco Meraki MS120-8, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable
Tech Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Console port
RJ-45
Networking
Networking standards
IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1w
10G support
N
Broadcast storm control
Y
DHCP client
Y
DHCP server
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Data transmission
MAC address table
16000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Y
Jumbo frames
9600
Virtual LAN features
VLAN support
Y
Number of VLANs
4094
Multicast features
Multicast support
Y
Security
Access Control List (ACL)
Y
IGMP snooping
Y
BPDU filtering/protection
Y
Root protection
Y
DHCP snooping
Y
Protocols
Management protocols
SNMP
Switching protocols
RSTP, STP, LLDP, CDP
Design
Rack mounting
N
Product colour
Grey
Wall mountable
Y
Power
Power consumption (typical)
5 W
Power connector
DC-in jack
Power consumption (max)
16 W
AC input voltage
100 - 240 V
AC input frequency
47 - 63 Hz
Input current
2.5 A
DC input voltage
12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
222 mm
Depth
150 mm
Height
28 mm
Weight
1.07 kg
