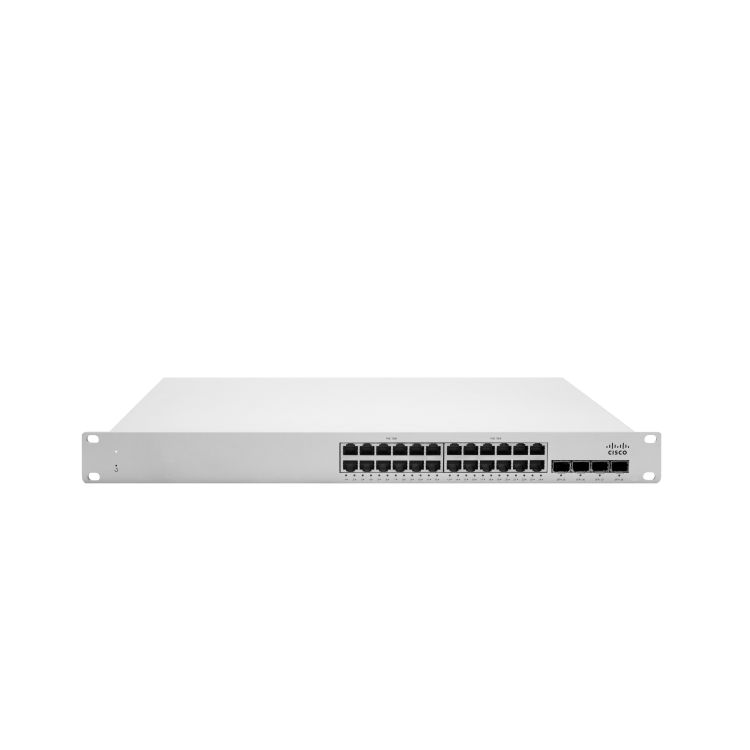

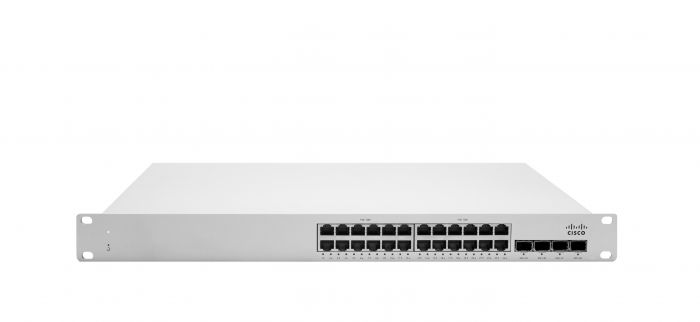

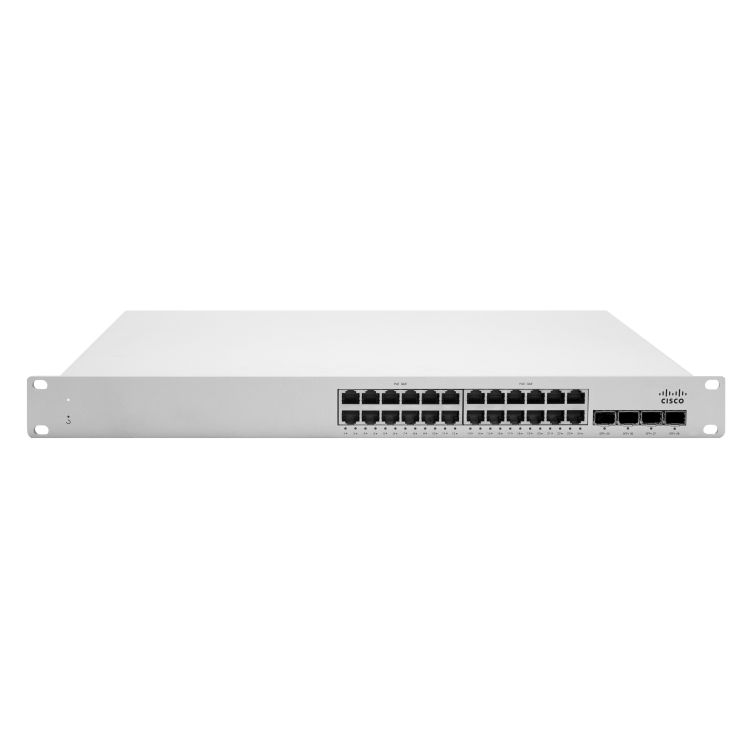

Cisco Meraki MS225-24 L2 Stackable Cloud Managed Switch 24x GigE
EAN:
0810979012818
Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote...
Product Description
Product Description
Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.
- General purpose switch for branch deployments
- Physical and virtual stacking
- Redundant power
Technical Spec
Technical Spec
Product Description
Cisco Meraki MS225-24 L2 Stck Cld-Mngd 24x GigE Switch, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
System event log
Y
Web-based management
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
4
Networking
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1w
Port mirroring
Y
Broadcast storm control
Y
DHCP client
Y
DHCP server
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Data transmission
MAC address table
16000 entries
Switching capacity
128 Gbit/s
Number of queues
8
Virtual LAN features
VLAN support
Y
Number of VLANs
4095
Multicast features
Multicast support
Y
Security
Security algorithms
802.1x RADIUS
Access Control List (ACL)
Y
IGMP snooping
Y
Design
Rack mounting
Y
Stackable
Y
Product colour
Grey
Form factor
1U
Performance
Mean time between failures (MTBF)
590165 h
Power
Power consumption (typical)
15 W
Power consumption (max)
24 W
AC input voltage
100-240 V
AC input frequency
47/63 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
484.6 mm
Depth
250 mm
Height
43.8 mm
Weight
2.73 kg
