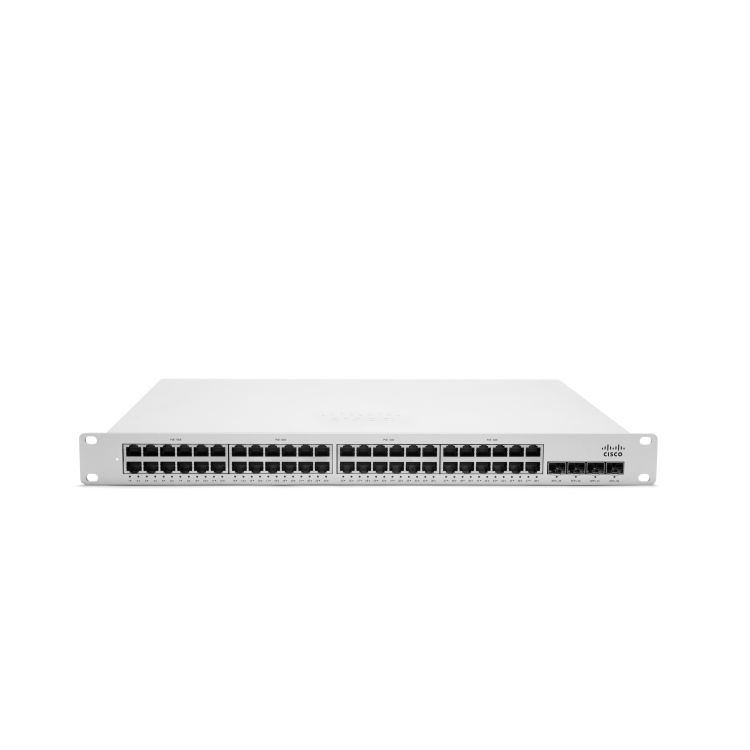

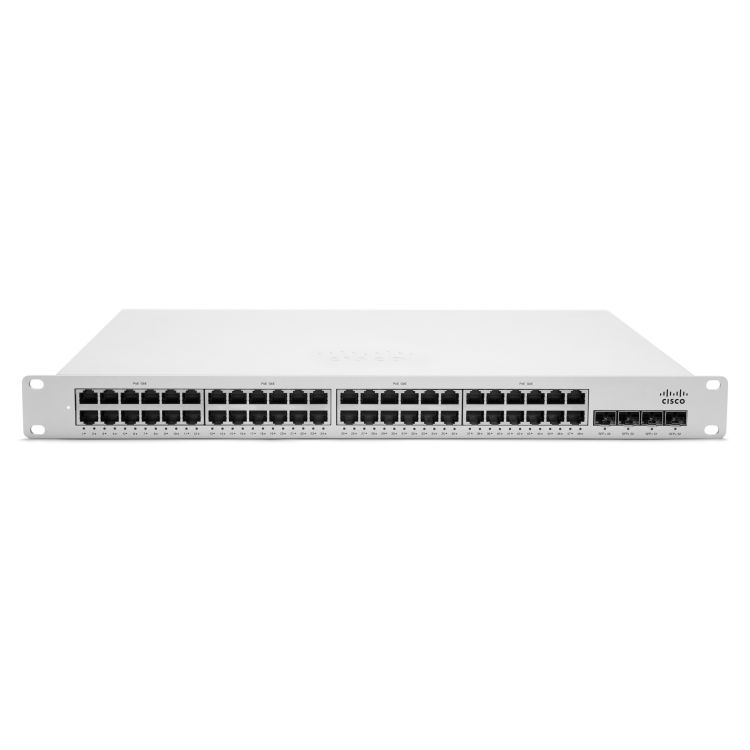

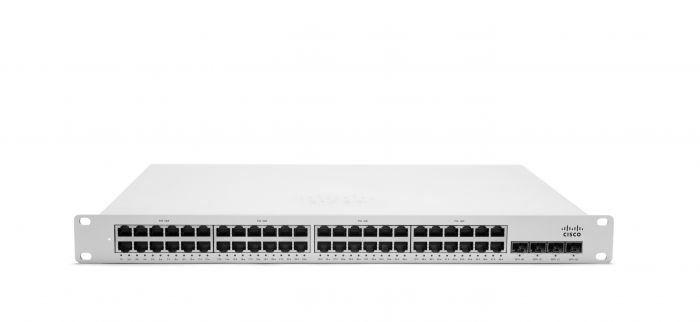

Cisco MS350-48FP Managed L3 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (PoE)
Cloud Managed Switching for the Mission Critical Network Cloud management - Visibility and control over thousands of ports - Built-in multi site management - Zero touch provisioning Monitoring and diagnostics - Cable failure...
Product Description
Product Description
Cloud Managed Switching for the Mission Critical Network
Cloud management
- Visibility and control over thousands of ports
- Built-in multi site management
- Zero touch provisioning
Monitoring and diagnostics
- Cable failure testing
- Gateway connectivity testing
- Real time troubleshooting tools
- Email and text message alerts
Layer 3
- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- First of a kind UI-based configuration
- Easy to configure routed interfaces
- Warm spare redundancy (VRRP)
- DHCP Failover
Technical Spec
Technical Spec
Product Description
Cisco MS350-48FP, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Y
Web-based management
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Copper ethernet cabling technology
10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
Gigabit Ethernet (copper) ports quantity
48
ExpressCard slot
N
Networking
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3z
10G support
Y
Link aggregation
Y
Broadcast storm control
Y
DHCP server
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Data transmission
MAC address table
96000 entries
Switching capacity
176 Gbit/s
Virtual LAN features
VLAN support
Y
Number of VLANs
4095
Tagged VLAN
Y
Multicast features
Multicast support
Y
Security
Security algorithms
802.1x RADIUS
IGMP snooping
Y
Authentication
Port-based authentication
Protocols
Management protocols
SNMP v2c
Design
Rack mounting
Y
Stackable
Y
Product colour
Grey
Form factor
1U
LED indicators
Y
Performance
Physical stacking (units)
8
Firmware upgradeable
Y
Auto-negotiation
Y
Power
Power consumption (typical)
70 W
Power consumption (max)
888 W
AC input voltage
100-240 V
Power supply included
Y
AC input frequency
47/63 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) power per port
25.5 W
Total Power over Ethernet (PoE) budget
740 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
485 mm
Depth
554 mm
Height
44 mm
Weight
6.8 kg
