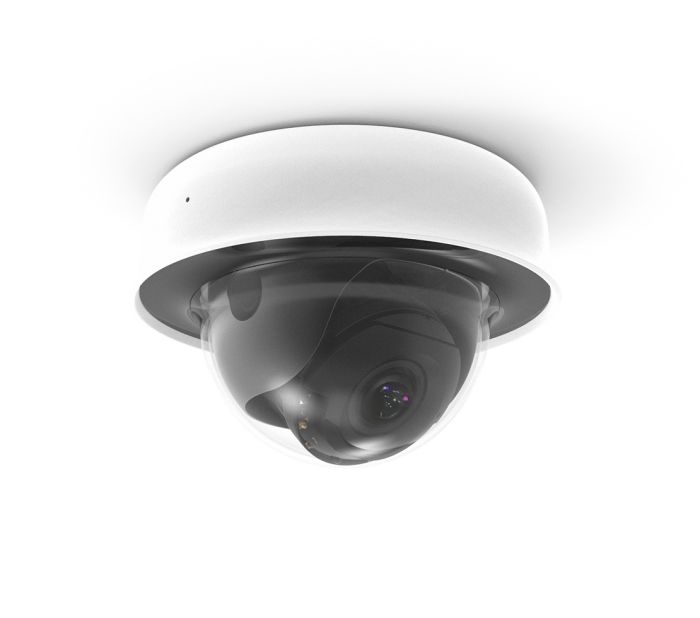

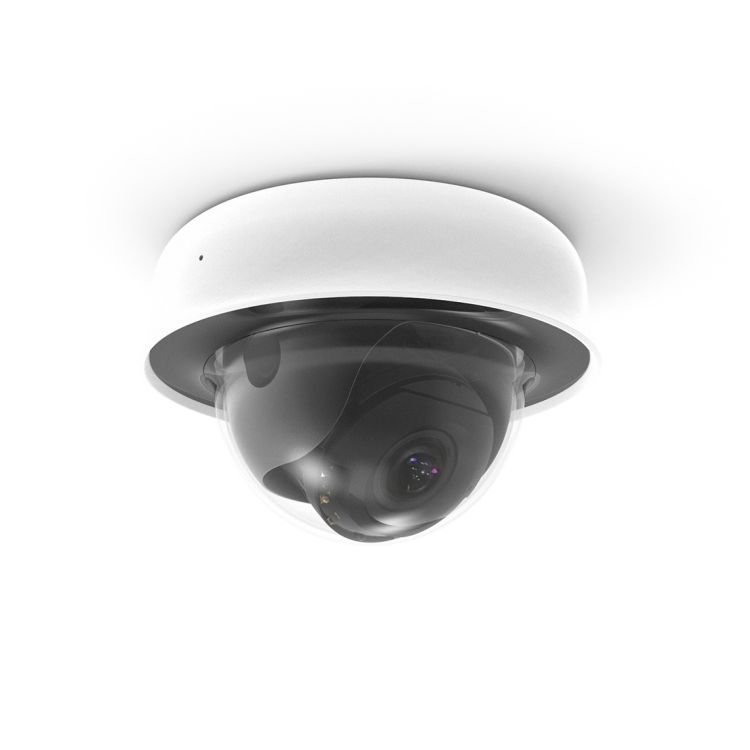

Cisco Meraki MV72 IP Smart Security Camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
EAN:
0810979015901
The MV Smart Camera family brings powerful, advanced analytics to the typical security camera world. With a powerful processor the same kind found on many of today’s smartphones—and an innovative architecture which minimizes physical...
Product Description
Product Description
The MV Smart Camera family brings powerful, advanced analytics to the typical security camera world. With a powerful processor the same kind found on many of today’s smartphones—and an
innovative architecture which minimizes physical infrastructure as well as software requirements, these smart cameras from Cisco Meraki represent a shift from cameras simply ensuring physical safety and security, to providing powerful business intelligence as well.
MV: BEYOND JUST SECURITY
MV cameras feature an innovative architecture which places high-endurance storage locally on the camera and removes the network video recorder (NVR) from the equation. Not only does this drastically simplify both installation and scaling, but it also eliminates a major network security vulnerability in the IT infrastructure.
Features like LLDP insights, offline device alerting, and built-in remote troubleshooting tools reduce time to resolution and free up personnel to make IT improvements, providing added business value. And, because MV is managed through the browser-based Meraki dashboard and operates using a licensing model, there’s no need to purchase, download, and maintain any additional software. Management through the Meraki dashboard ensures firmware updates will continually roll out over the lifespan of the product, meaning its value will only increase over time.
Featuring an industry-leading processor, these cameras are not only capable of providing high definition (1080p) video, but they also allow for on-board analytics capabilities that previously required additional software and heavy-duty hardware.
Harnessing the power of computer vision and machine learning, this camera line can dynamically classify people as objects within a frame. This simple-seeming insight builds the foundation for more effective and efficient processes, like people counting. And the best part is that they will only get smarter, and more accurate, over time.
Technical Spec
Technical Spec
Product Description
Cisco Meraki MV72, IP security camera, Indoor & outdoor, Wired, Internal, 4.4 dBi, Dome
Tech Specs
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Y
Day/night mode
Y
Antenna type
Internal
Antenna gain level (max)
4.4 dBi
Built-in heater
Y
Plug and Play
Y
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
Black,White
International Protection (IP) code
IP67
IK code
IK10
Camera
Minimum illumination
0.01 lx
Angle of rotation
90°
Viewing angle, horizontal
112°
Viewing angle, vertical
57°
Viewing angle, diagonal
138°
Tilt angle range
0 - 65°
Pan range
0 - 354°
Camera shutter speed
1/30 - 1/32000 s
Image sensor
Sensor type
CMOS
Number of sensors
1
Optical sensor size
25.4 / 3 mm (1 / 3")
Progressive scan
Y
Number of effective pixels (H x V)
2688 x 1520 pixels
Lens system
Number of lenses
1
Zoom capability
Y
Optical zoom
3x
Maximum aperture number
2.3
Minimum aperture number
1.2
Focal length range (f-f)
3 - 9 mm
Night vision
Night vision
Y
Night vision distance
30 m
LED type
IR
Video
Maximum resolution
1920 x 1080 pixels
Total megapixels
4 MP
Video formats supported
H.264
Video compression formats
H.264
Supported graphics resolutions
1920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
20 fps
Networking
Ethernet LAN
Y
Wi-Fi
Y
Bluetooth
N
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3af,IEEE 802.3at
Wi-Fi standards
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Cabling technology
10/100/1000Base-T(X)
Frequency band
5 GHz
Storage
Built-in HDD
N
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Interface
RJ-45
Security
Video motion detection
Y
Security algorithms
256-bit AES,AES,EAP-TTLS,TKIP,WPA,WPA2-Enterprise,WPA2-PSK
Management features
Reset button
Y
Power
Power source type
PoE
Power consumption (max)
25.5 W
Power consumption (Power over Ethernet (PoE))
12.95 W
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Weight & dimensions
Height
103 mm
Diameter
16.5 cm
Weight
1.25 kg
Weight (with stand)
1.35 kg
Packaging content
Number of cameras
1
Mounting kit
Y
Quick installation guide
Y
