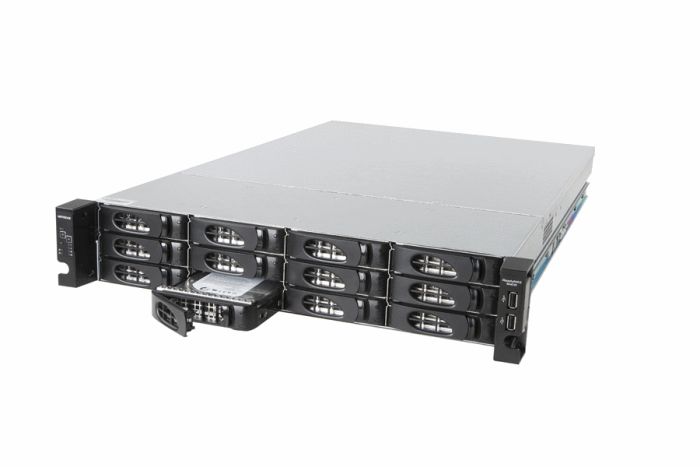

NETGEAR ReadyNAS 3220 2U 12-Bay 6x3TB Rack (2U) Intel® Core™ i3 i3-3220 4 GB 18 TB Black
EAN:
6064491004644
NETGEAR ReadyNAS 3220 2U 12-Bay 6x3TB. Chassis type: Rack (2U). Processor family: Intel® Core™ i3, Processor model: i3-3220, Processor frequency: 3.3 GHz. Internal memory: 4 GB. Total installed storage capacity: 18 TB
Product Description
Product Description
0
NETGEAR ReadyNAS 3220 2U 12-Bay 6x3TB. Chassis type: Rack (2U). Processor family: Intel® Core™ i3, Processor model: i3-3220, Processor frequency: 3.3 GHz. Internal memory: 4 GB. Total installed storage capacity: 18 TB
NETGEAR ReadyNAS 3220 2U 12-Bay 6x3TB. Chassis type: Rack (2U). Processor family: Intel® Core™ i3, Processor model: i3-3220, Processor frequency: 3.3 GHz. Internal memory: 4 GB. Total installed storage capacity: 18 TB
Technical Spec
Technical Spec
Product Description
NETGEAR ReadyNAS 3220 2U 12-Bay 6x3TB, Rack (2U), Intel® Core™ i3, i3-3220, 4 GB, 18 TB, Black
Tech Specs
Storage
Total installed storage capacity
18 TB
Number of storage drives installed
6
Number of storage drives supported
12
Storage drive capacity
3 TB
Storage drive interface
Serial ATA
RAID support
Yes
Storage drive size
2.5/3.5"
Maximum supported storage capacity
48 TB
RAID levels
0, 1, 5, 6, 10
Hot-swap drive bays
Yes
Processor
Processor family
Intel® Core™ i3
Processor manufacturer
Intel
Processor model
i3-3220
Processor frequency
3.3 GHz
Processor generation
3rd gen Intel® Core™ i3
Processor cores
2
Processor threads
4
Processor cache
3 MB
L3 cache
3 MB
Number of processors installed
1
Bus type
DMI
CPU configuration (max)
1
CPU multiplier (bus/core ratio)
33
ECC supported by processor
Yes
PCI Express configurations
1x16, 2x8
PCI Express slots version
2.0
Processor cache type
Smart Cache
Processor codename
Ivy Bridge
Processor lithography
22 nm
Processor operating modes
64-bit
Processor package size
37.5 x 37.5 mm
Processor series
Intel Core i3-3200 Desktop Series
Processor socket
LGA 1155 (Socket H2)
System bus rate
5 GT/s
Tcase
65.3 °C
Thermal Design Power (TDP)
55 W
On-board graphics card model
Intel® HD Graphics 2500
Maximum internal memory supported by processor
32 GB
Memory bandwidth supported by processor (max)
25.6 GB/s
Conflict-Free processor
Yes
Memory
Internal memory
4 GB
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
No
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Fiber ports quantity
0
eSATA ports quantity
2
eSATA
Yes
Graphics
On-board graphics card base frequency
650 MHz
On-board graphics card dynamic frequency (max)
1050 MHz
On-board graphics card ID
0x152
Number of displays supported (on-board graphics)
3
Design
Chassis type
Rack (2U)
Product colour
Black
Performance
Security algorithms
256-bit AES
Software
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Server operating systems supported
Windows Server 2008, Windows Server 2012
Power
Power supply unit (PSU) capacity
550 W
Redundant power supply (RPS) support
Yes
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Weight & dimensions
Width
445 mm
Depth
707 mm
Height
88 mm
Weight
12 kg
Processor special features
Embedded options available
Yes
Enhanced Intel SpeedStep Technology
Yes
Execute Disable Bit
Yes
Idle States
Yes
Intel 64
Yes
Intel Enhanced Halt State
Yes
Intel Fast Memory Access
Yes
Intel FDI Technology
Yes
Intel Flex Memory Access
Yes
Intel Identity Protection Technology version
1.00
Intel Secure Key Technology version
0.00
Intel Trusted Execution Technology
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
No
Intel® Anti-Theft Technology (Intel® AT)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Insider™
Yes
Intel® InTru™ 3D Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Secure Key
No
Intel® Turbo Boost Technology
No
Intel® Wireless Display (Intel® WiDi)
Yes
Thermal Monitoring Technologies
Yes
Thermal solution specification
PCG 2011C
Memory channels supported by processor
Dual
Memory types supported by processor
DDR3-SDRAM
Logistics data
Harmonized System (HS) code
84714100
Other features
Compliance certificates
RoHS
Processor ARK ID
65693
