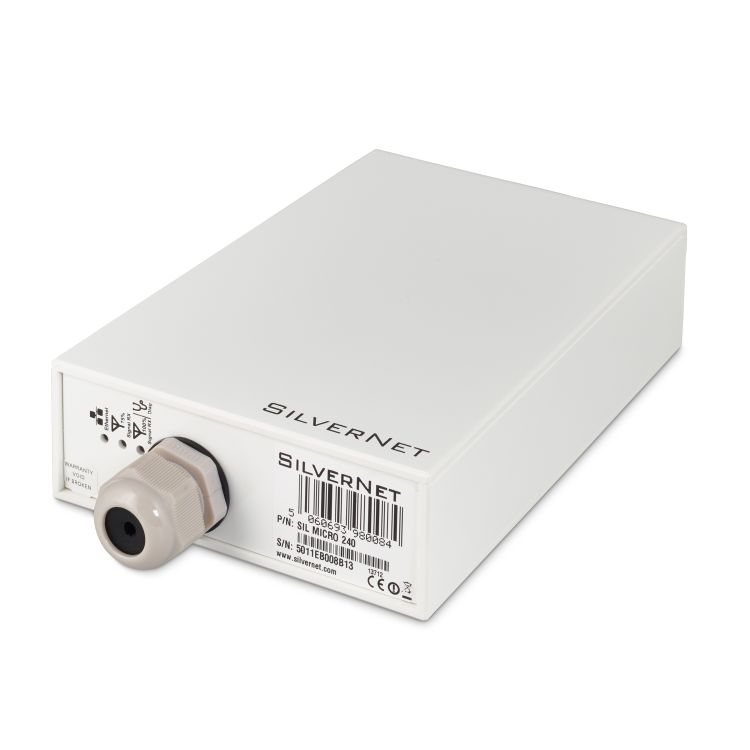

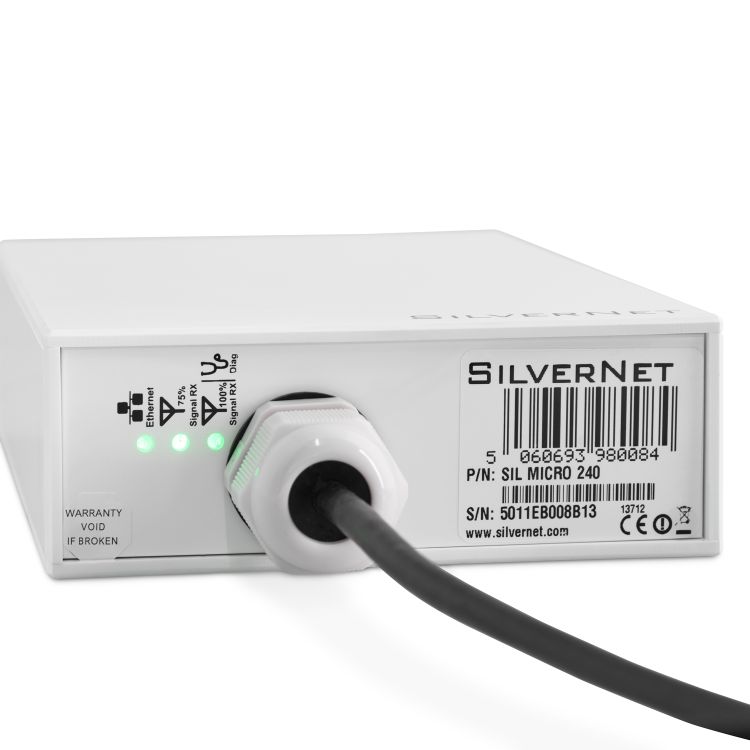

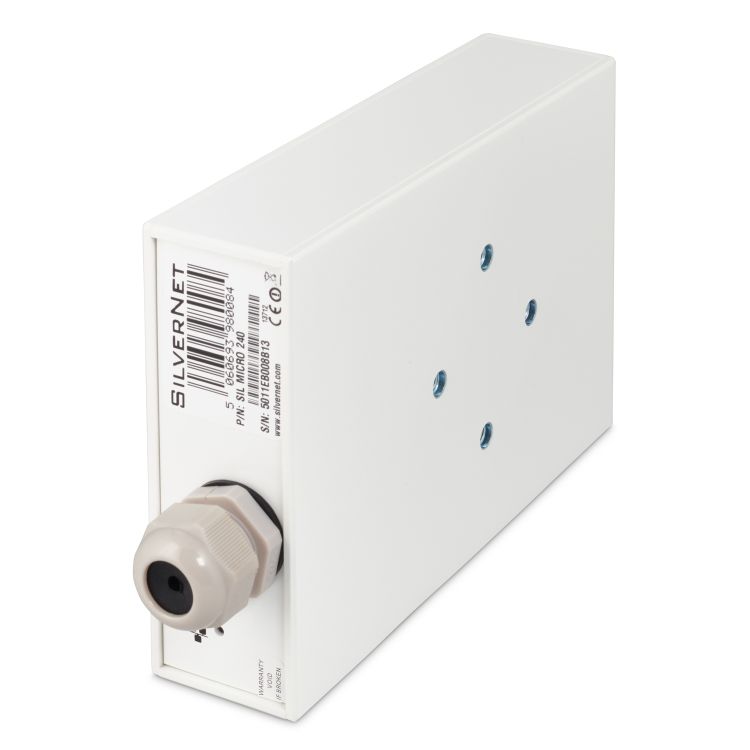

SilverNet SIL MICRO 500-PCP bridge/repeater Network bridge 500 Mbit/s White
EAN:
5060693982798
SilverNet SIL MICRO 500-PCP. Maximum data transfer rate: 500 Mbit/s, Maximum transfer distance: 2000 m, Supported data transfer rates: 500Mbps. Antenna design: Internal, Antenna gain level (max): 14 dBi, Pan/tilt-axis range: 180°. Wi-Fi band:...
Product Description
Product Description
0
SilverNet SIL MICRO 500-PCP. Maximum data transfer rate: 500 Mbit/s, Maximum transfer distance: 2000 m, Supported data transfer rates: 500Mbps. Antenna design: Internal, Antenna gain level (max): 14 dBi, Pan/tilt-axis range: 180°. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x. Connectivity technology: Wired & Wireless
SilverNet SIL MICRO 500-PCP. Maximum data transfer rate: 500 Mbit/s, Maximum transfer distance: 2000 m, Supported data transfer rates: 500Mbps. Antenna design: Internal, Antenna gain level (max): 14 dBi, Pan/tilt-axis range: 180°. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x. Connectivity technology: Wired & Wireless
Technical Spec
Technical Spec
Product Description
SilverNet SIL MICRO 500-PCP, Network bridge, 500 Mbit/s, Wi-Fi, Ethernet LAN, Wall mountable, White
Tech Specs
Maximum data transfer rate
500 Mbit/s
Maximum transfer distance
2000 m
Supported data transfer rates
500Mbps
Antenna design
Internal
Antenna gain level (max)
14 dBi
Pan/tilt-axis range
180°
Antennas quantity
1
Wi-Fi
Yes
Wi-Fi band
Single-band (5 GHz)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
300 Mbit/s
Frequency band
5.1 - 5.8 GHz
Transmission gain
0 - 14 dB
Signal strength
-40 dBm
Channels quantity
25 channels
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Receiver sensitivity
-82dBm@54Mbps, -74dBm@300Mbps, [email protected]
Output power (dBm)
26
Indoor range
2000m
Outdoor range
2000m
Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
Cabling technology
10/100/1000Base-T(X)
Full duplex
Yes
Auto MDI/MDI-X
Yes
Static IP
Yes
Dynamic IP
Yes
Connectivity technology
Wired & Wireless
Ethernet LAN (RJ-45) ports
1
Security algorithms
128-bit AES, 256-bit AES
Security features
802.1x, 802.11i, 802.1Q
MAC address filtering
Yes
Authentication method
WPA2 AES
Management protocols
SNMP V2
Web-based management
Yes
DHCP client
Yes
Product type
Network bridge
Product colour
White
Remote control function
Yes
LED indicators
LAN, Signal strength
Automatic Transmit Power Control (ATPC)
Yes
Wall mountable
Yes
Reset button
Yes
International Protection (IP) code
IP67
Surge protection
Yes
Quality of Service (QoS) support
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Network Time Protocol (NTP) client
Yes
Mean time between failures (MTBF)
60000 h
Country of origin
United Kingdom
Minimum system requirements
Internet Explorer, Google Chrome, Mozilla Firefox
Compatible operating systems
Microsoft Windows, Mac OS, Linux Distributions
Power source type
PoE
AC input voltage
100-240 V
Power supply
15.4 W
DC input voltage
24 - 48 V
Power consumption (typical)
6 W
Power consumption (max)
16 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
48 V
Power plug type
Type G
Operating temperature (T-T)
-4 - 158 °F
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 90 °C
Storage relative humidity (H-H)
0 - 95%
Certification
CE, FCC
Antenna diameter
20.5 cm
Width
179 mm
Depth
120 mm
Height
45 mm
Weight
500 g

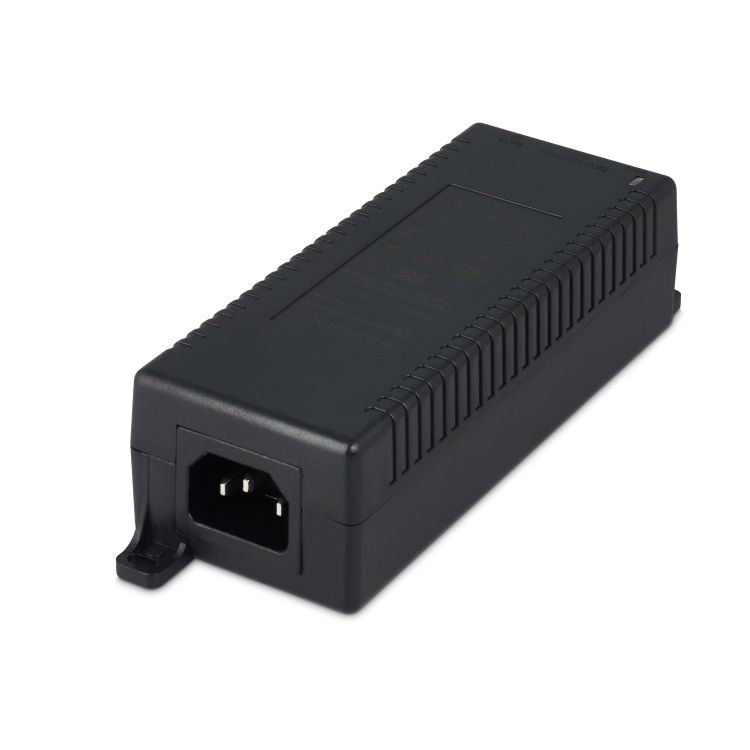

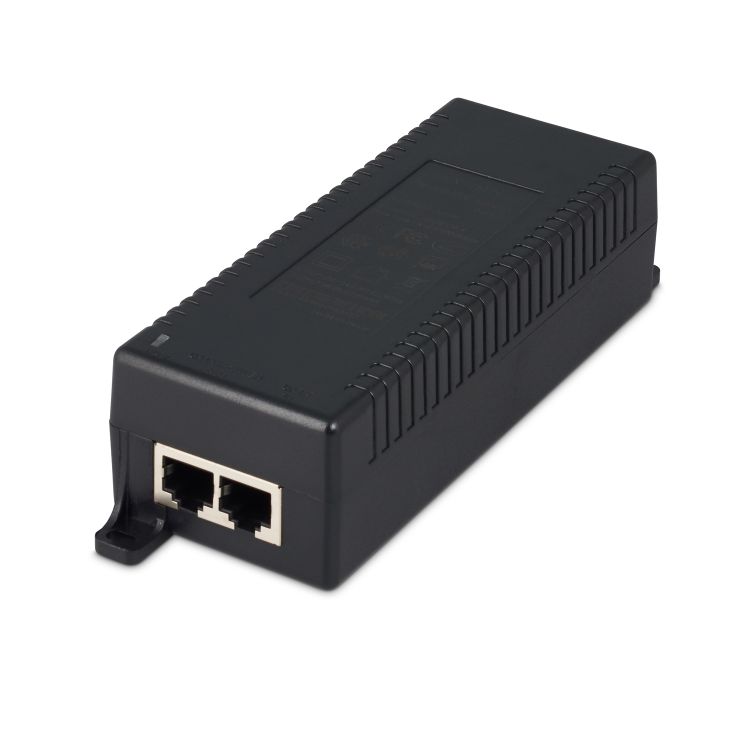

PoE+ Injector(s)
Yes

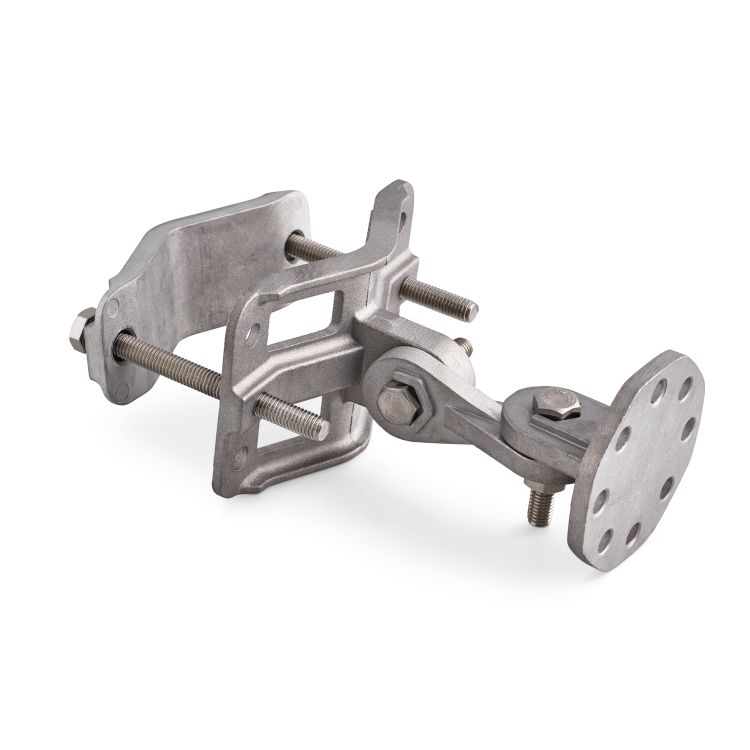

Mounting bracket(s) included
Yes
Power supply included
Yes
Antenna included
Yes
Quick installation guide
Yes
Package width
290 mm
Package depth
115 mm
Package height
320 mm
Package weight
3.15 kg
Package type
Box
Quantity per pack
1 pc(s)
UK Trade Tariff code
85176200
