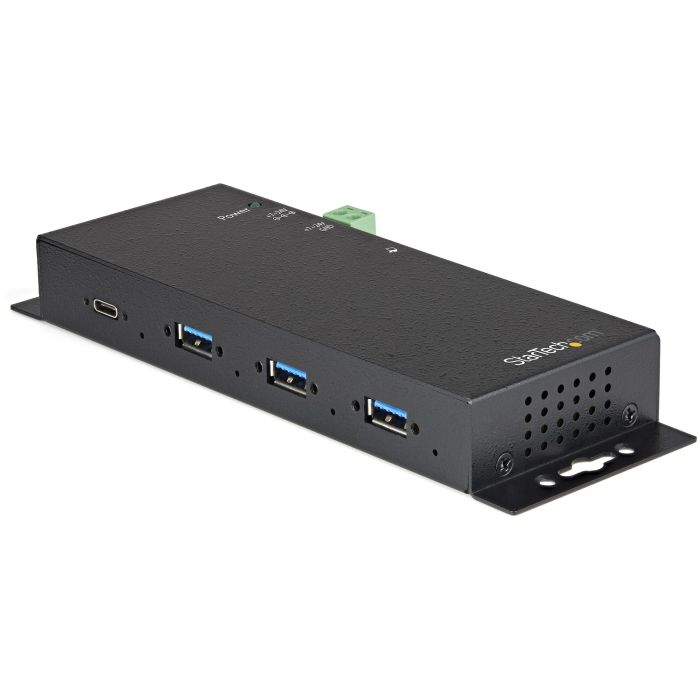

StarTech.com HB31C3A1CME, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10000 Mbit/s, Black, Steel, Link, Power
Tech Specs
Ports & interfaces
Ports quantity
4
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Terminal block port
Y
Features
Data transfer rate
10000 Mbit/s
Product color
Black
Housing material
Steel
Surge protection
Y
LED indicators
Link, Power
Network
UASP support
Y
Power
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Weight & dimensions
Width
2.35" (59.6 mm)
Depth
5.98" (152 mm)
Height
0.925" (23.5 mm)
Weight
9.91 oz (281 g)
Packaging data
Quantity per pack
1 pc(s)
Package width
5.87" (149 mm)
Package depth
11.4" (290 mm)
Package height
2.76" (70 mm)
Package weight
2.65 lbs (1.2 kg)
Packaging content
Included power plug types
ANZ, EU, JP, UK, US
Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C
Manual
Y
Terminal block included
Y
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
0 - 85%
Logistics data
Master (outer) case width
15.4" (39 cm)
Master (outer) case length
20.3" (51.5 cm)
Master (outer) case height
12.3" (31.3 cm)
Quantity per master (outer) case
14 pc(s)
Technical details
Sustainability certificates
CE, RoHS
Other features
Chipset
VIA/VLI - VL822
