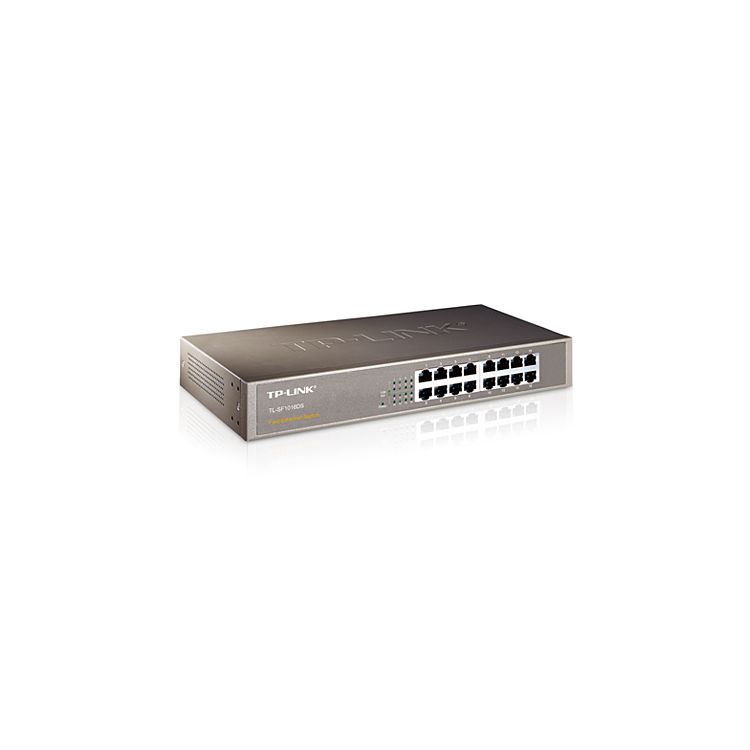

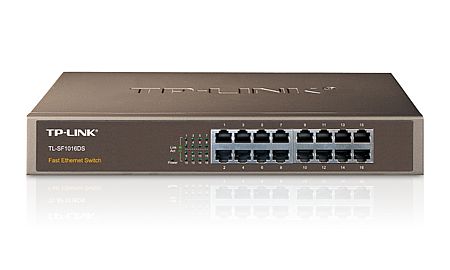

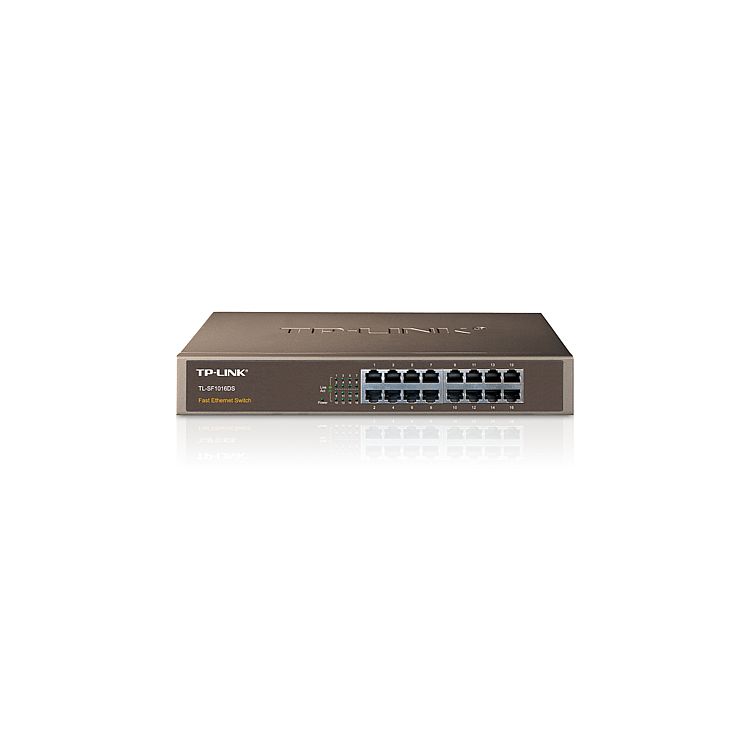

TP-Link TL-SF1016DS network switch Unmanaged Fast Ethernet (10/100) 1U Black
EAN:
6935364021535
TP-Link TL-SF1016DS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking...
Product Description
Product Description
TP-Link TL-SF1016DS. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U
Technical Spec
Technical Spec
Product Description
TP-Link TL-SF1016DS, Unmanaged, Fast Ethernet (10/100), Rack mounting, 1U
Tech Specs
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Fast Ethernet (copper) ports quantity
16
Network
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100 Mbit/s
Auto-negotiation
Yes
Data transmission
MAC address table
8000 entries
Switching capacity
3.2 Gbit/s
Throughput
2.38 Mpps
Store-and-forward
Yes
Packet buffer memory
2 MB
Security
Static port security
Yes
Protocols
Supported network protocols
TCP/IP
Design
Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Black
Housing material
Metal
Redundant fans support
Yes
Number of fans
0 fan(s)
Performance
Fanless
Yes
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
2.06 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
7.03 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Packaging data
Rubber feet
Yes
Package width
250 mm
Package depth
400 mm
Package height
80 mm
Package weight
1.95 kg
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certification
FCC, RoHS
Sustainability
Sustainability compliance
Yes
