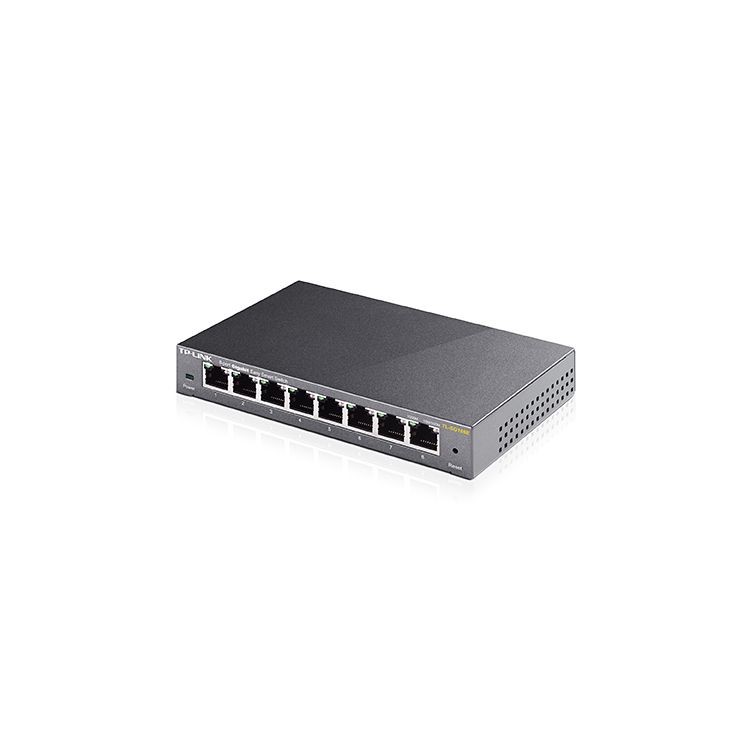

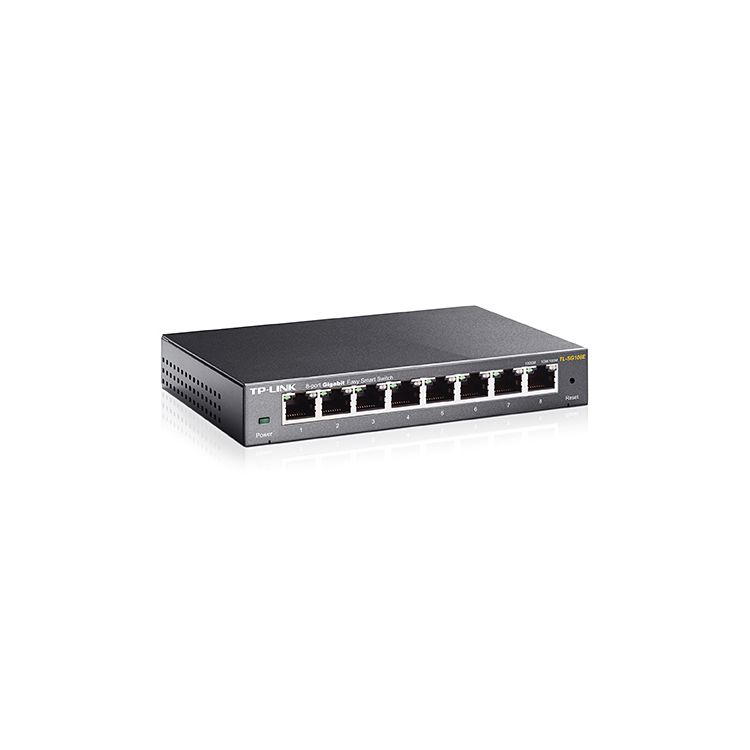

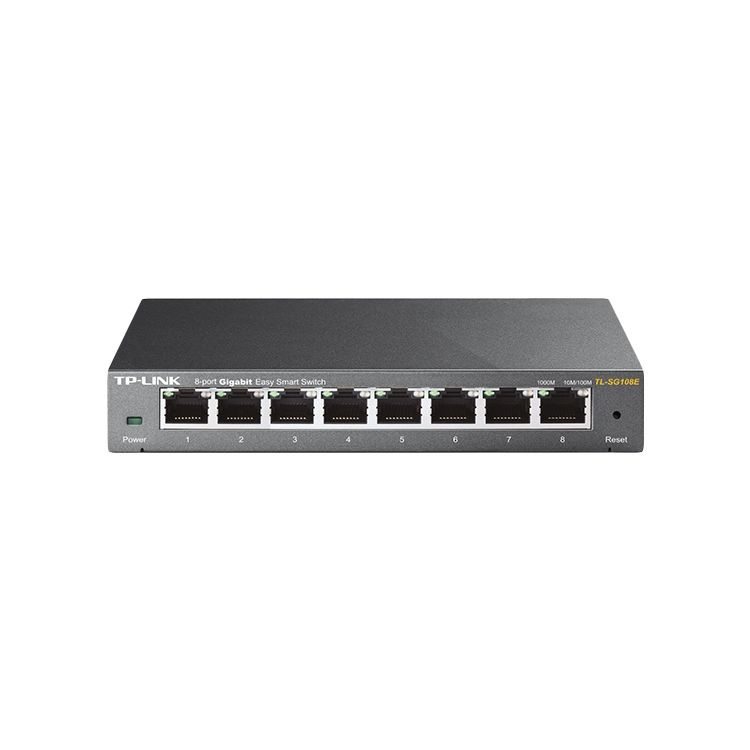

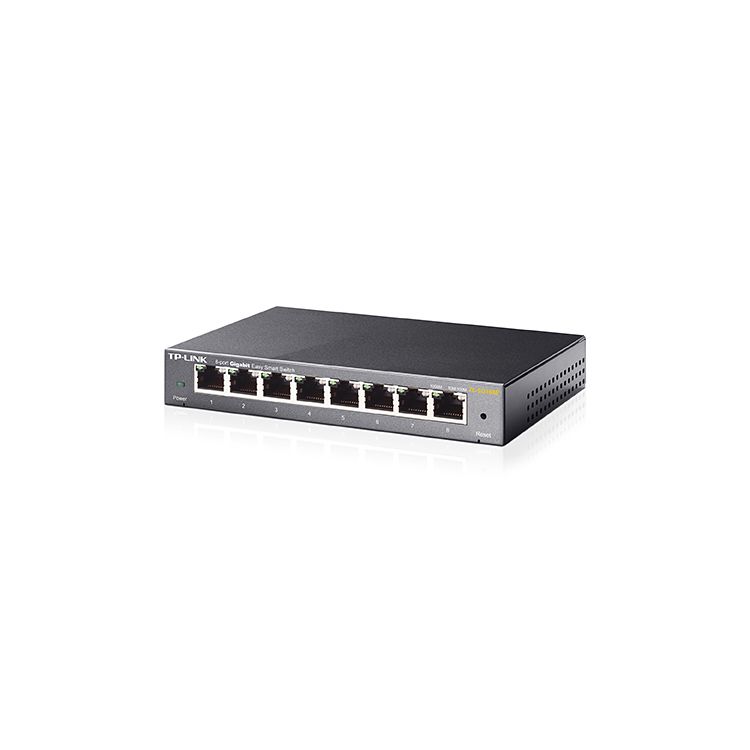

TP-Link TL-SG108E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
EAN:
8459730218568
TP-Link TL-SG108E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16...
Product Description
Product Description
TP-Link TL-SG108E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V
Technical Spec
Technical Spec
Product Description
TP-Link TL-SG108E, Managed, L2, Gigabit Ethernet (10/100/1000)
Tech Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
Yes
Number of VLANs
32
Data transmission
MAC address table
4000 entries
Switching capacity
16 Gbit/s
Throughput
11.9 Mpps
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
16000
Packet buffer memory
1.5 MB
Security
IGMP snooping
Yes
Multicast features
Number of multicast groups filtered
128
Design
Product colour
Black
Housing material
Metal
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
9 V
Input current
0.6 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
12.55 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging content
Cables included
AC
User guide
Yes
Packaging data
Package type
Box
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
