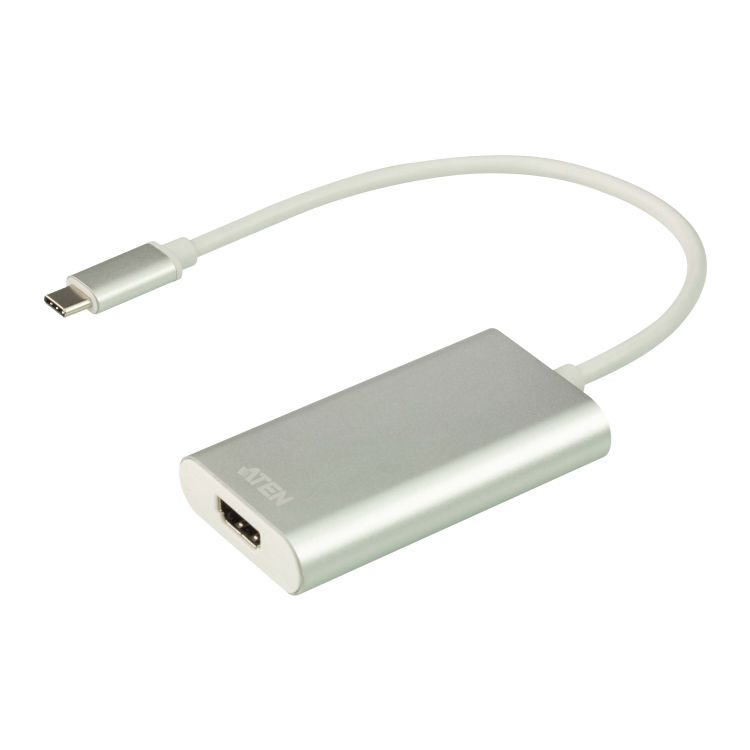

Aten CAMLIVE video capturing device HDMI
EAN:
0672792009433
"CAMLIVE" is an HDMI UVC Video Capture device to send unencrypted HDMI video to your USB-C or Thunderbolt 3 laptop (or USB-A with the included adapter). It’s compliant with latest USB 3.1 Type-C specification. CAMLIVE is designed to Plug &...
Product Description
Product Description
"CAMLIVE" is an HDMI UVC Video Capture device to send unencrypted HDMI video to your USB-C or Thunderbolt 3 laptop (or USB-A with the included adapter). It’s compliant with latest USB 3.1 Type-C specification.
CAMLIVE is designed to Plug & Play. Its built-in UVC and UAC standard support allows system operation without installing drivers and, at the same time, delivers eye-popping, highquality video on Windows and Mac systems at 1080/60fps. By sending captured RAW data, you can enjoy video editing or live streaming with various popular third-party video-editing software/platforms - Open Broadcaster Software (OBS), Xsplit,Twitch, YouTube, Facebook, to name a few.
Having a slim and aesthetic design, CAMLIVE provides you with an enjoyable, high-quality live streaming/video editing experience with style whether at work or on the go.
Technical Spec
Technical Spec
Product Description
Aten CAMLIVE, 60 fps, 480p,720p,1080p, 40 g, 73 mm, 42 mm, 14 mm
Tech Specs
Technical details
Internal
N
Host interface
HDMI
Interface
USB 3.1 Gen1 Type-C
Plug and Play
Y
Audio formats supported
PCM
Housing material
Aluminium
Video
Maximum frame rate
60 fps
Supported video modes
480p,720p,1080p
Ports & interfaces
HDMI ports quantity
1
HDMI in
1
Weight & dimensions
Weight
40 g
Width
73 mm
Depth
42 mm
Height
14 mm
Power
USB powered
Y
Software
Windows operating systems supported
Windows 10,Windows 7,Windows 8
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave
System requirements
Minimum processor
Intel i3 Dual Core 2.8Ghz
Minimum RAM
4000 MB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging content
User guide
Y
