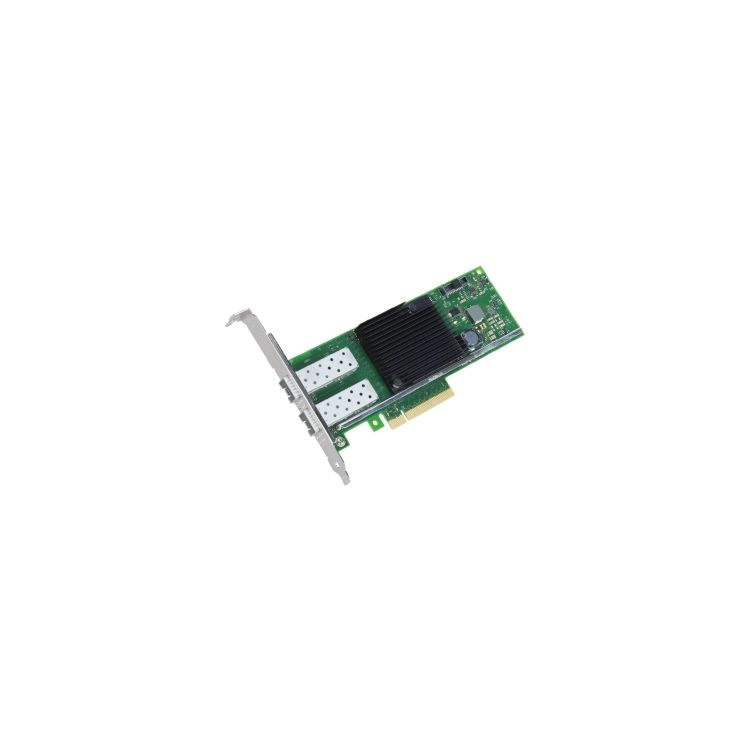

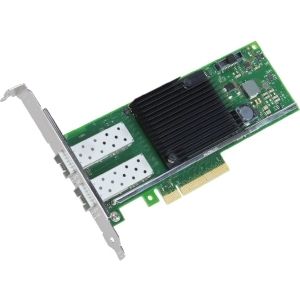

Cisco UCSC-PCIE-ID10GF. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 40000 Mbit/s. Product colour: Green
Technical Spec
Technical Spec
Product Description
Cisco UCSC-PCIE-ID10GF, Internal, Wired, PCI Express, Fiber, 40000 Mbit/s, Green
Tech Specs
Connectivity technology
Wired
Host interface
PCI Express
Interface
Fiber
Fiber ports quantity
2
PCI Card form factor
Half-height (low-profile)
Maximum data transfer rate
40000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN data rates
10000 Mbit/s
Cabling technology
10GBase-T
VLAN tagging
Yes
iSCSI support
Yes
LAN controller
Intel® X550
Internal
Yes
Product colour
Green
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
0 - 90%
Data transfer rate
8 GT/s
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Intelligent Offloads
Yes
Fiber Channel over Ethernet
Yes
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
