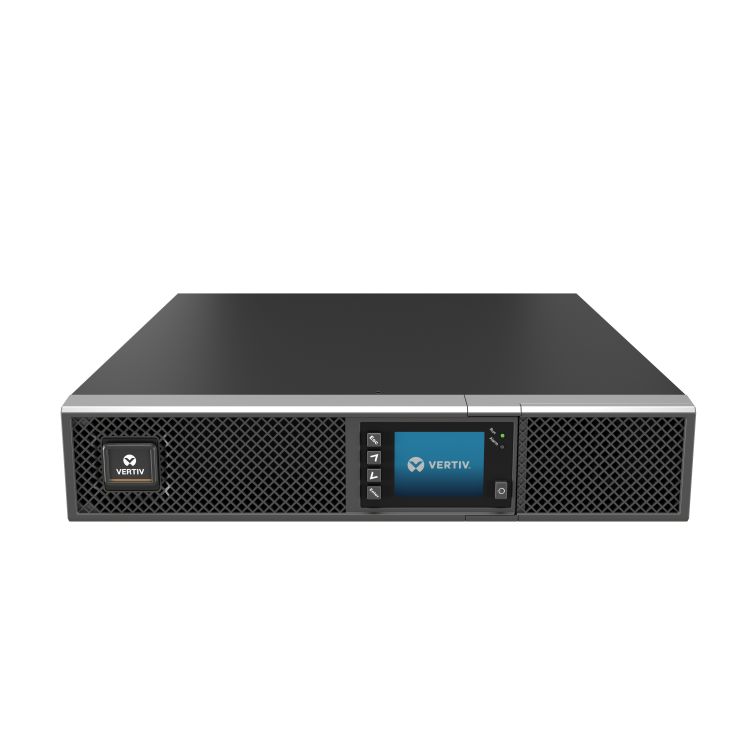

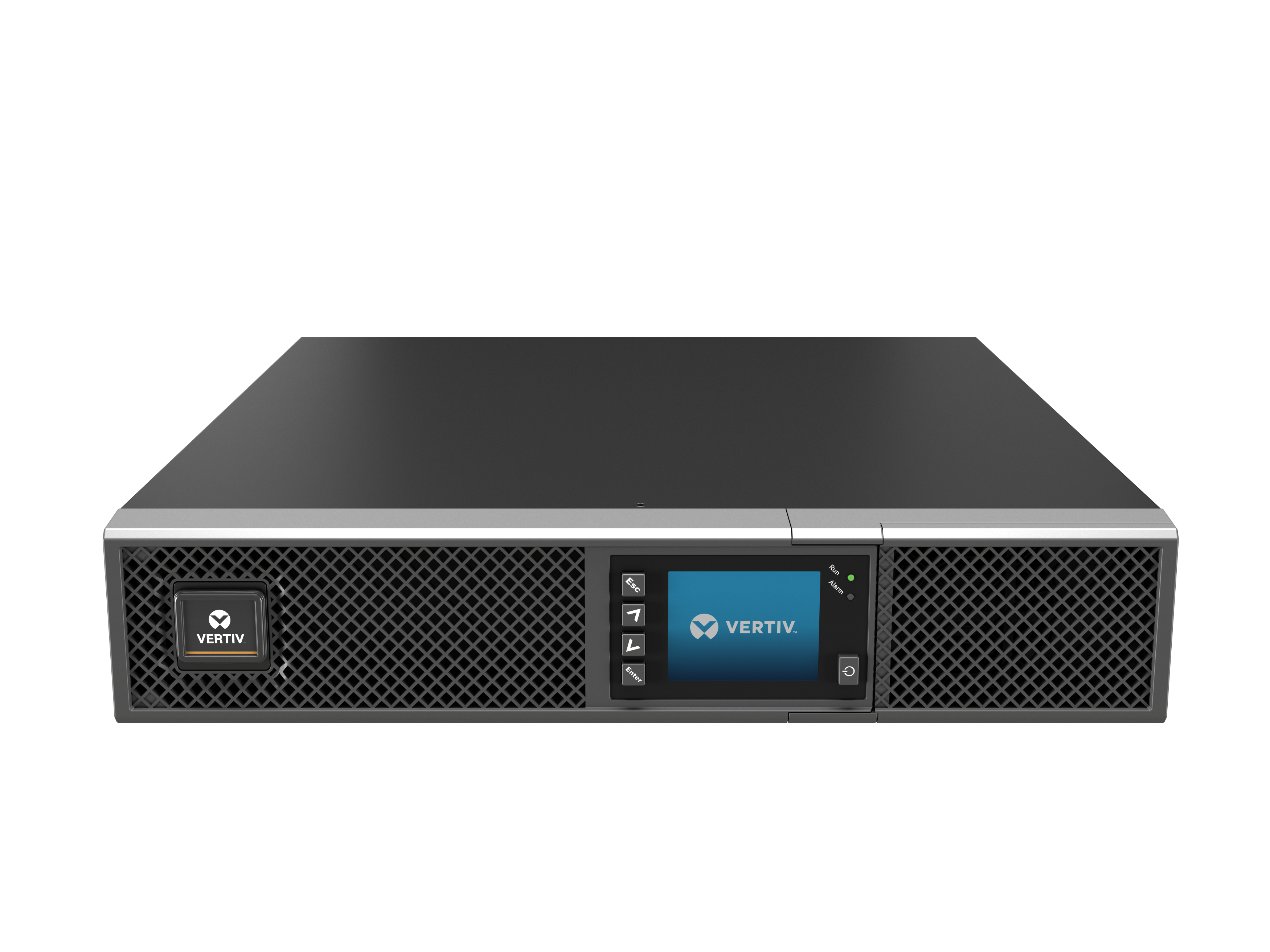

Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL
EAN:
0767041026467
Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL. UPS topology: Double-conversion (Online), Output power capacity: 0.75 kVA, Output power: 750 W. AC outlet types: C13 coupler, C19...
Product Description
Product Description
0
Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL. UPS topology: Double-conversion (Online), Output power capacity: 0.75 kVA, Output power: 750 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 8 AC outlet(s), Serial interface type: RS-232, RS-485. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 VAh, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Compliance certificates: REACH, RoHS, Certification: IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI)
Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL. UPS topology: Double-conversion (Online), Output power capacity: 0.75 kVA, Output power: 750 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 8 AC outlet(s), Serial interface type: RS-232, RS-485. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 VAh, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Compliance certificates: REACH, RoHS, Certification: IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI)
Technical Spec
Technical Spec
Product Description
Vertiv Liebert GXT5 Double Online Conversion UPS - 750VA/750W | 230V | With Rackmount Kit | GXT5-750IRT2UXL, Double-conversion (Online), 0.75 kVA, 750 W, Pure sine, 115 V, 288 V
Tech Specs
Features
UPS topology
Double-conversion (Online)
Output power capacity
0.75 kVA
Output power
750 W
Waveform
Pure sine
Input operation voltage (min)
115 V
Input operation voltage (max)
288 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Output voltage regulation
3%
Response time
0 ms
Number of input phases
1
Efficiency
95%
Input power factor
0.99
Emergency Power Off (EPO)
Yes
Noise level
46 dB
Power protection features
Overload
Audible alarm(s)
Yes
Ports & interfaces

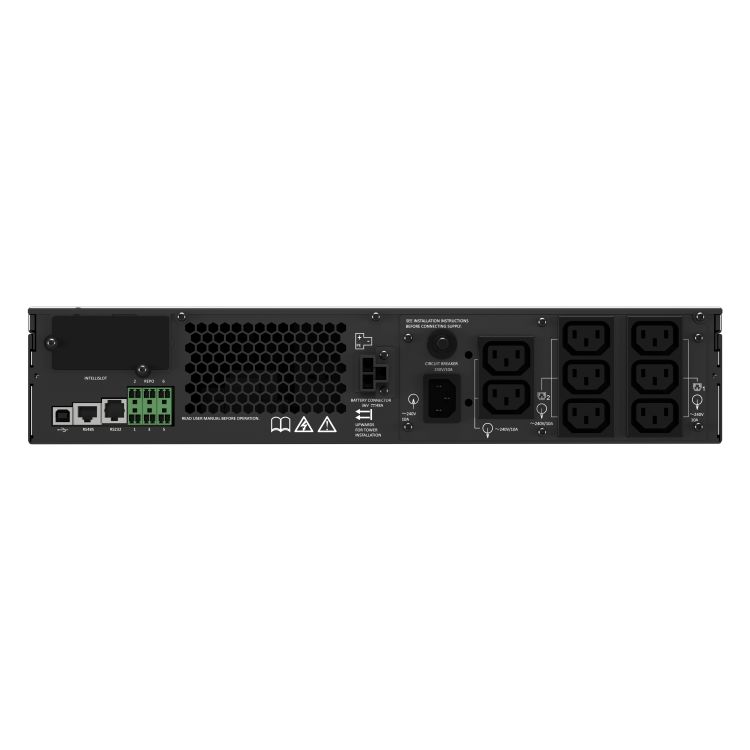

AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Serial interface type
RS-232, RS-485
Serial ports quantity
1
Emergency Power Off (EPO) connector
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 VAh
Battery voltage
12 V
Typical backup time at full load
10.5 min
Typical backup time at half load
25.7 min
Battery recharge time
3 h
Hot-swap battery
Yes
Design
Form factor
Rackmount/Tower
Product colour
Black
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Certificates
Compliance certificates
REACH, RoHS
Certification
IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6);
FCC 15 A
CISPR22 A(RFI)
Safety regulation & standards
Safety
IEC62040-1
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
430 mm
Depth
400 mm
Height
85 mm
Weight
16.8 kg
Packaging data
Package width
517 mm
Package depth
617 mm
Package height
262 mm
Package weight
21.4 kg
Logistics data
Harmonized System (HS) code
85078000
Other features
Battery type
VRLA
Output connections
IEC320 C13
Input connection type
C14
Dimensions (WxDxH)
430 x 400 x 85 mm
Nominal output voltage
230 V
Nominal input voltage
230 V
Overload protection
Yes
Package dimensions (WxDxH)
517 x 617 x 262 mm
Bypass
Yes
Non-operating relative humidity (non-condensing)
0 - 95%
