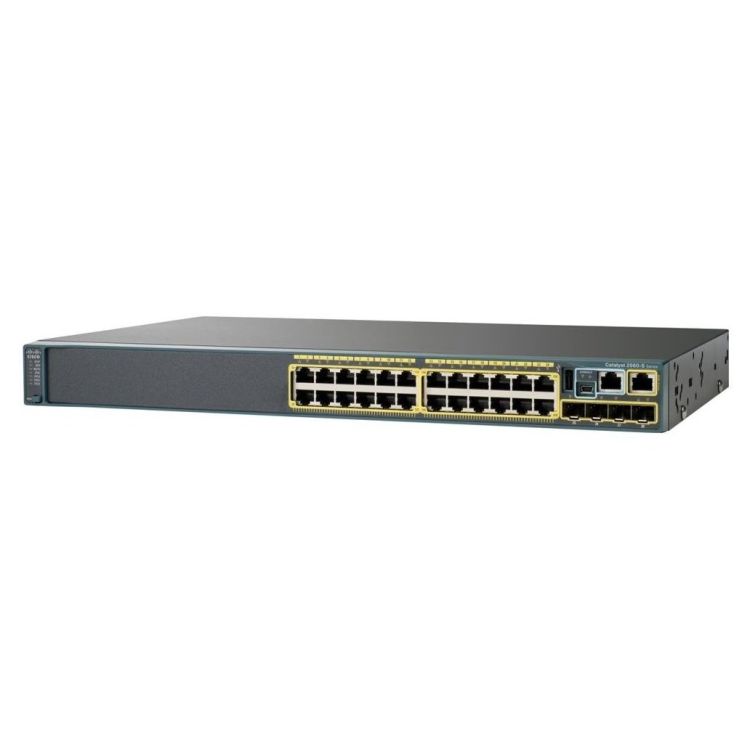

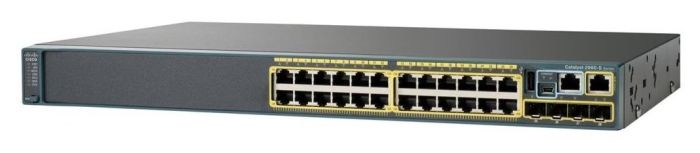

Cisco Catalyst 2960X-24PD-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PD-L)
EAN:
0012304769330
Cisco Catalyst 2960X-24PD-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PD-L). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet...
Product Description
Product Description
0
Cisco Catalyst 2960X-24PD-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PD-L). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting
Cisco Catalyst 2960X-24PD-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PD-L). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting
Technical Spec
Technical Spec
Product Description
Cisco Catalyst 2960X-24PD-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PD-L), Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Tech Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
2
Console port
RJ-45
USB 2.0 ports quantity
2
Network
Networking standards
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
1023
Data transmission
MAC address table
16000 entries
Switching capacity
216 Gbit/s
Throughput
95.2 Mpps
Jumbo frames support
Yes
Security
DHCP features
DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
SSH/SSL support
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Stackable
Yes
Product colour
Black
LED indicators
Yes
Market segment
Business
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Performance
Built-in processor
Yes
Processor model
AppliedMicro APM8639
Processor frequency
600 MHz
Memory type
DRAM
Internal memory
512 MB
Flash memory
128 MB
Noise level
39 dB
Mean time between failures (MTBF)
325780 h
Power
Redundant power supply (RPS) support
Yes
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
52.3 W
Power plug type
Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Total Power over Ethernet (PoE) budget
370 W
Other features
Power LED
Yes
Packaging content
WS-C2960X-24PD-L Switch, Accessory Kit, 1 printed document
Operational conditions
Operating temperature (T-T)
-5 - 40 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4000 m
Weight & dimensions
Width
445 mm
Depth
368 mm
Height
45 mm
Weight
5.7 kg
Packaging data
Package width
469.9 mm
Package depth
549.4 mm
Package height
147.6 mm
Package weight
7.03 kg
Technical details
Products per shipping (inner) case
1 pc(s)
Logistics data
Quantity per pack
1 pc(s)
Country of origin
China
Harmonized System (HS) code
85176990
Products per master (outer) case
1 pc(s)
